What is Manual J Calculation? Why It Matters for Homeowners?

HVAC systems aren’t cheap (prices range from $3,500 to $8,500+). And once they’re in, you’re stuck with them for years. That’s why you want to get it right the first time. It starts with knowing what size your home actually needs. And that’s where Manual J comes in.

This article will explain Manual J, what it includes, and why every Canadian homeowner should ask for it before replacing or upgrading their HVAC.

What Is Manual J?

Manual J is a calculation that tells you how much heating and cooling your home actually needs. It’s the first step any HVAC contractor takes before installing a new system.

It considers factors like your home’s size, layout, insulation, windows, and even the local climate to determine the right HVAC system size, so you’re not overpaying for something too big or stuck with something too weak.

Manual J was developed by the Air Conditioning Contractors of America (ACCA) and is the industry standard in North America for sizing residential HVAC systems.

Why Is Manual J Important in Canada?

Canada’s weather can swing hard from freezing winters to hot, humid summers, and everything in between. That makes it even more important to size your furnace, air conditioner, or heat pump properly.

Manual J is the go-to method for load calculations in the U.S., but the process is slightly different in Canada. Here, we typically follow CSA standard F280 (sometimes called F-280-12), which is Canada’s own version of Manual J. It’s the same idea but a different standard.

Both methods determine how much heating or cooling your home needs, based on square footage, insulation, windows, climate zone, and more. The key difference is that CSA F280 uses Canadian climate data and building codes.

Try our free HVAC system size calculators to get a rough idea:

• AC Size Calculator
• Furnace Size Calculator
• Heat Pump Size Calculator

Components of a Manual J Calculation

In Canada, a full Manual J (or CSA F280) calculation usually costs around $150 to $300. That’s a small slice (about 0.5% to 2% of what you’d pay for a full HVAC replacement). But it can save you thousands in the long run by avoiding oversizing or undersizing.

Here’s what’s included in a proper load calculation:

• Total square footage of the home
• Room-by-room dimensions
• Insulation levels in the attic, walls, and basement
• Window and door sizes, type, and direction
• Air leakage rates (tight vs. drafty homes)
• Local design temperatures for your climate zone
• Orientation of the home (north, south, etc.)
• Number of people living in the house
• Heat from appliances, lighting, and electronics
• Ductwork placement (in conditioned or unconditioned space)
• Basement and attic usage

How to Perform a Manual J Calculation

If you’re replacing your furnace or AC, don’t just copy the size of your old one. That’s how most homeowners end up with systems that cost more and work worse.

A Manual J calculation is the right way to do it. It uses your home’s actual numbers—like square footage, insulation, and climate zone—to figure out the exact heating and cooling load.

Here’s a full, step-by-step walkthrough of how it’s done.

Step 1: Measure Each Room

Use a tape measure to get the length and width of every room.

Formula:

Area of Room = Length × Width

Example:

12 ft × 15 ft = 180 sq ft

Do this for all rooms. You’ll need these for room-by-room load estimates.

Step 2: Estimate Heating Load (BTUs per hour)

Here’s a basic formula to estimate heating load:

Heating Load (BTU/hr) = Area × Heating Factor

The Heating Factor depends on your location and insulation. Here’s a general guide for Canada:

Example:

180 sq ft bedroom × 40 (heating factor for average insulation in Ontario) = 7,200 BTU/hr

Repeat for each room and add them up to get your total heating load.

Step 3: Estimate Cooling Load

Cooling is split into two parts:

• Sensible load (removing heat)
• Latent load (removing moisture)

For a rough estimate:

Cooling Load (BTU/hr) = Area × Cooling Factor

Typical Canadian range: 20–30 BTU/hr per sq ft

Example:

180 sq ft × 25 = 4,500 BTU/hr

Add more if:

• The room faces west or south
• Has lots of windows
• Has electronics or cooking appliances

Step 4: Add Window and Door Adjustments

Windows and doors add heat loss in winter and heat gain in summer. Here’s how to factor them in:

• Add 1,000–1,500 BTU/hr per window, depending on size and quality
• Add 500–700 BTU/hr per exterior door
• Subtract a bit if they’re well-sealed or triple-pane

Step 5: Account for Occupants and Appliances

Every person gives off heat. So do lights and electronics.

• Add 230–300 BTU/hr per person
• Add appliance loads:
  • Kitchen: 1,200–2,000 BTU/hr
  • Laundry room: 500–1,000 BTU/hr
  • Home office: 400–800 BTU/hr

Step 6: Adjust for Local Design Temperature

Use this to check if your numbers line up with your local weather extremes.

Example Design Temperatures:

• Toronto: -21°C (winter), 30°C (summer)
• Edmonton: -30°C, 26°C
• Vancouver: -7°C, 28°C

If your home is in Edmonton, your system needs to handle much more heat in winter than someone in Victoria.

Step 7: Add It All Up

Now total everything:

• Room loads (heating + cooling)
• Window and door losses
• Internal gains (people + appliances)

This gives you:

• Total Heating Load in BTU/hr
• Total Cooling Load in BTU/hr

Then, match your system to that number.

1 ton of cooling = 12,000 BTU/hr

So, if your home needs 30,000 BTU/hr cooling, you need a 2.5-ton AC.

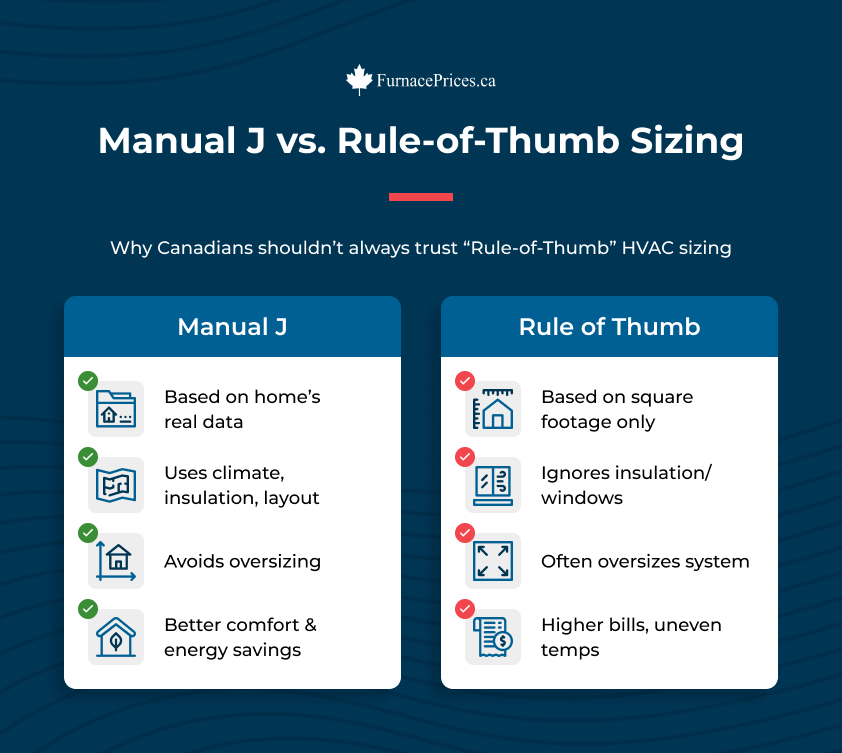

Manual J vs. Rule-of-Thumb Sizing

Many HVAC systems in Canada are still sized using outdated rules of thumb. One of the most common is “500 square feet per ton.” That means for a 2,000 sq ft house, some contractors would recommend a 4-ton (48,000 BTU) air conditioner without even doing the math.

But here’s the problem: that method often overshoots what your home actually needs.

Here’s why the rule-of-thumb method falls short:

• It ignores insulation levels
• It doesn’t account for window type or placement
• It overlooks local climate data
• It treats every home like a copy-paste project

An HVAC consultant reviewed data from hundreds of newer homes and found the real average was closer to 850 sq ft per ton. For a 2,000 sq ft home, a proper Manual J might call for a 2.5-ton system, not 4.

One homeowner shared that after getting quotes from two contractors recommending a 2.5-ton AC, they insisted on a Manual J calculation.

Instead, they only needed a 1.5-ton unit (about 18,000 BTU). That’s a full ton smaller. Less cost, lower energy bills, and better comfort.

Get a Free Quote from Trusted Local Pros

An HVAC system is a big investment. Sizing it wrong can cost you in comfort, energy bills, and repairs down the road.

If you want the right system the first time, get the numbers done properly.

Request a no-obligation quote from trusted local experts who will actually do the math. It’s quick, easy, and saves you headaches later. Get your free quote today!
